Special pattern card Plate, Patterned Card Lamination Steel Plate, Plastic Card Lamination Plate, Prelam Inlay Steel Plate


1.Introduction for Special pattern card Plate, Patterned Card Lamination Steel Plate, Plastic Card Lamination Plate, Prelam Inlay Steel Plate

(keyword: card lamination steel plate, laminator steel plate, textured laminating steel plate, special pattern lamination plate,  card finish lamination plate, card production material )

Special pattern lamination steel plates are mainly used for personalized pattern finish card lamination. It can well ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.




2.Features for Special pattern card Plate, Patterned Card Lamination Steel Plate, Plastic Card Lamination Plate, Prelam Inlay Steel Plate


1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.

2. Two sides have the silk pattern in the same quality.

3. There are no scratches, dents, stripes shadows and dust on plate surfaces.

4. The edges are smooth and deburred with the round curved corners.

5. After lamination, the plates are not sticking to the laminated plastic sheets.





3.Parameters for Special pattern card Plate, Patterned Card Lamination Steel Plate, Plastic Card Lamination Plate, Prelam Inlay Steel Plate

Technical Parameters:

Plate size(L×W) A4, A3 or custom-made size

Plate thickness  1.0 mm (Thickness tolerance: ±0.05mm)

Dimension tolerance: ±1mm for length and width.

Plate flatness level: maximum 1 mm.m

Surface pattern:   Fine silk/Rough silk

Surface hardness:  HRC26±20

Thermal transmission:  0.04cal/℃.cm.sec at 20℃

Packaging box: solid plywood carton with soft cushion protection inside.

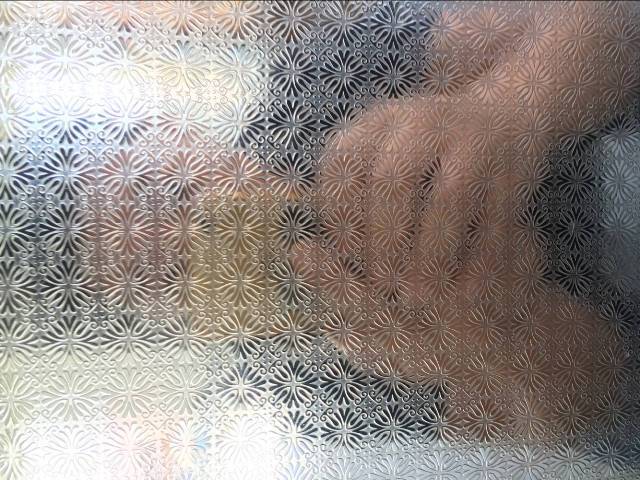

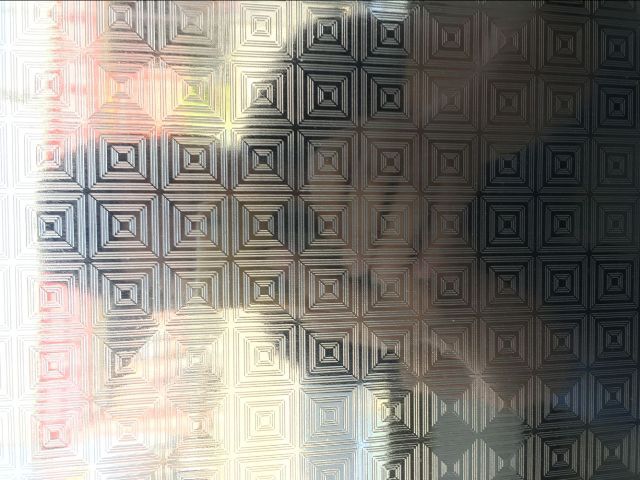

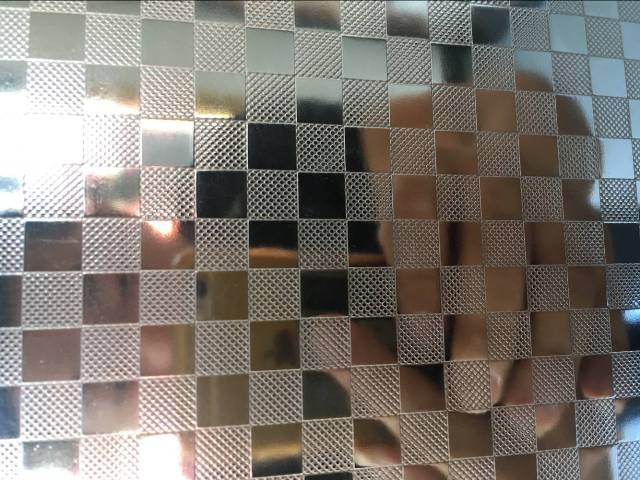

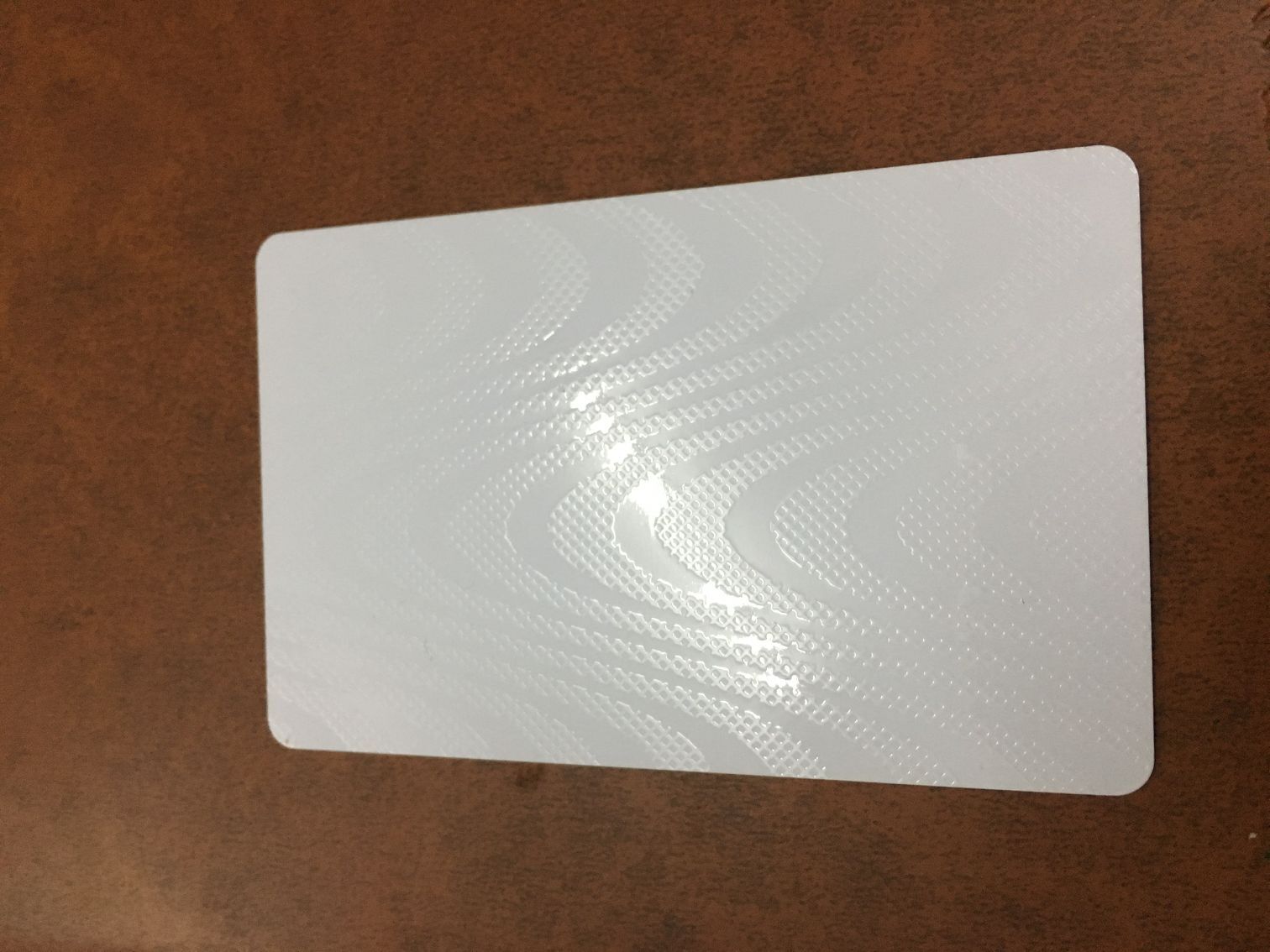

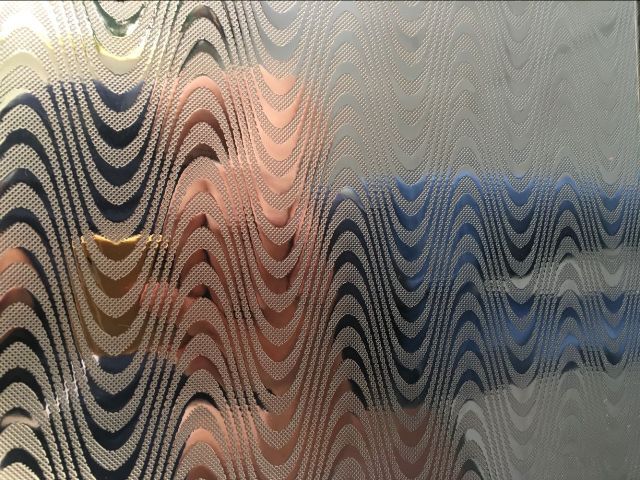

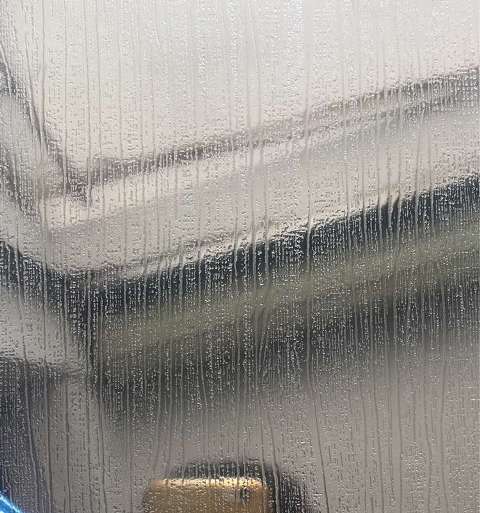

Some lamination effect as below:
